1 Basic tools of quantitative reasoning

1.1 Quantitative reasoning

Quantitative reasoning focuses on understanding the world through numbers. This course is designed to improve your ability at quantitative reasoning.

Some things that we’d like to improve your ability at are:

  • understanding how quantitative analyses can help measure characteristics of a population,
  • understanding how quantitative analyses can help determine what causes what,
  • understanding how quantitative analyses might be misleading due to error or intentional bias,
  • using software to perform quantitative analyses

This course is about quantitative reasoning in political science, but the concepts that we discuss can be applied to other areas of life, to help us assess evidence for questions such as:

  • Should I take a particular medicine?
  • Does breastfeeding improve child outcomes?
  • Do any benefits of breastfeeding a child persist into adulthood?
  • How large are any breastfeeding benefits that persist into adulthood?

This course will focus on making correct inferences. An inference is a conclusion about something that is not observed, based on things that are observed. For example, we might make a conclusion about the 350 million or so U.S. residents, based on a sample of only 3,000 U.S. residents. Causal inference is about what causes what, such as the extent, if any, to which a U.S. resident’s preferences about gun policy influence their vote for U.S. president. Descriptive inference does not concern causality. A sample descriptive inference question might be the percentage of the U.S. population that supports a ban on guns.

Let’s discuss some basic tools of quantitative reasoning…

1.2 Measures of central tendency

Major learning objective(s) for this section:

  1. Determine the mean of a set of data.
  2. Determine the median of a set of data.

Measures of central tendency provide information about the center of a set of numbers. A common measure of central tendency is the mean, which is the sum of all of the numbers in the set, divided by the total number of numbers in the set. Another common measure of central tendency is the median, which is a number that divides in half a set of numbers that is ordered from low to high. If the ordered set of numbers has an odd number of numbers, the median is the middle number; if the ordered set has an even number of numbers, the median is the mean of the middle two numbers.

Consider the set of five numbers {0,0,1,9,90}:

  • The mean is (0+0+1+9+90) \(\div\) 5, which is 100 \(\div\) 5, which is 20.
  • The median is the middle number in the ordered set, which is 1.

For another example, consider the set of six numbers {0,0,0,1,9,90}:

  • The mean is (0+0+0+1+9+90) \(\div\) 6, which is about 16.7.
  • The median is the mean of the middle two numbers in the ordered set, which is (0+1) \(\div\) 2, or 0.5.

Sample practice items

What is the mean of the set of numbers {0,10,20,70}?

Answer (0+10+20+70) \(\div\) 4, which is 25

What is the median of the set of numbers {0,5,19}?

Answer 5, which is the middle number when the set is ordered from low to high

What is the median of the set of numbers {0,10,20,70}?

Answer 15, which is the mean of the two middle numbers (10 and 20) when the set is ordered from low to high

1.3 Outliers

Major learning objective(s) for this section:

  1. Know what an outlier is, and estimate the effect of an outlier.

An outlier is a number in a set that is very far away from most of the other numbers in the set. A set of numbers might have no outliers, such as {-1,0,1,2,3,4}. Or a set of numbers might have one outlier, such as {0,0,0,1,9,90}, in which 90 is an outlier. Or a set of numbers might have multiple outliers, such as in the set {-100,-99,0,0,0,0,0,0,0,0,0,0,0,0,1,1,1,1,1,1,1,1,2,2,80}, in which -100, -99, and 80 are outliers.

An outlier affects the mean of a set of numbers more than an outlier affects the median of a set of numbers. For example, for the set {0,1,2}, the mean is 1, and the median is 1. But if we add the outlier 97 to get the set {0,1,2,97}, the mean increases to 25, but the median increases only to 1.5. Sometimes the mean can be a more useful measure than the median, and sometimes the median can be a more useful measure than the mean: it depends on whether outliers should have a small influence (in which case, the median is more useful) or a large influence (in which case, the mean is more useful).

Sample practice items

Which, if any, numbers is or are an outlier in the set {-1, 0, 0, 1, 1001}?

Answer 1001 only

Adding an outlier from a set of numbers be expected to cause a bigger change to ___ of the set of numbers.

  1. the mean
  2. the median
Answer
  1. the mean

Removing an outlier from a set of numbers be expected to cause a bigger change to ___ of the set of numbers.

  1. the mean
  2. the median
Answer
  1. the mean

A set of data for a research study indicated that international relations articles written by women received a higher median number of citations than international relations articles written by men did. Does this necessarily indicate that this set of data would also indicate that international relations articles written by women received a higher mean number of citations than international relations articles written by men did?

  1. Yes
  2. No, not necessarily
Answer
  1. No, not necessarily
    If men were more likely than women to have an outlier high number of citations, then that could push the male mean above the female mean, even if women had a higher median number of citations than men did. Consider the example in which citations are {0,1,98} for men and are {2,2,2} for women. The median is 1 for men and 2 for women, so the median is higher for women. But the mean is 33 for men, which is higher than the mean of 2 for women.

1.4 Standard deviation

Major learning objective(s) for this section:

  1. Answer items measuring knowledge of the definition of a standard deviation.

Standard deviation measures the variation that a set of numbers has around the mean of the set of numbers: all else equal, the more variation around the mean, the higher the standard deviation. Standard deviations range from 0 (for no variation around the mean) to infinity (for infinitely large variation around the mean). See the plot below for some examples.

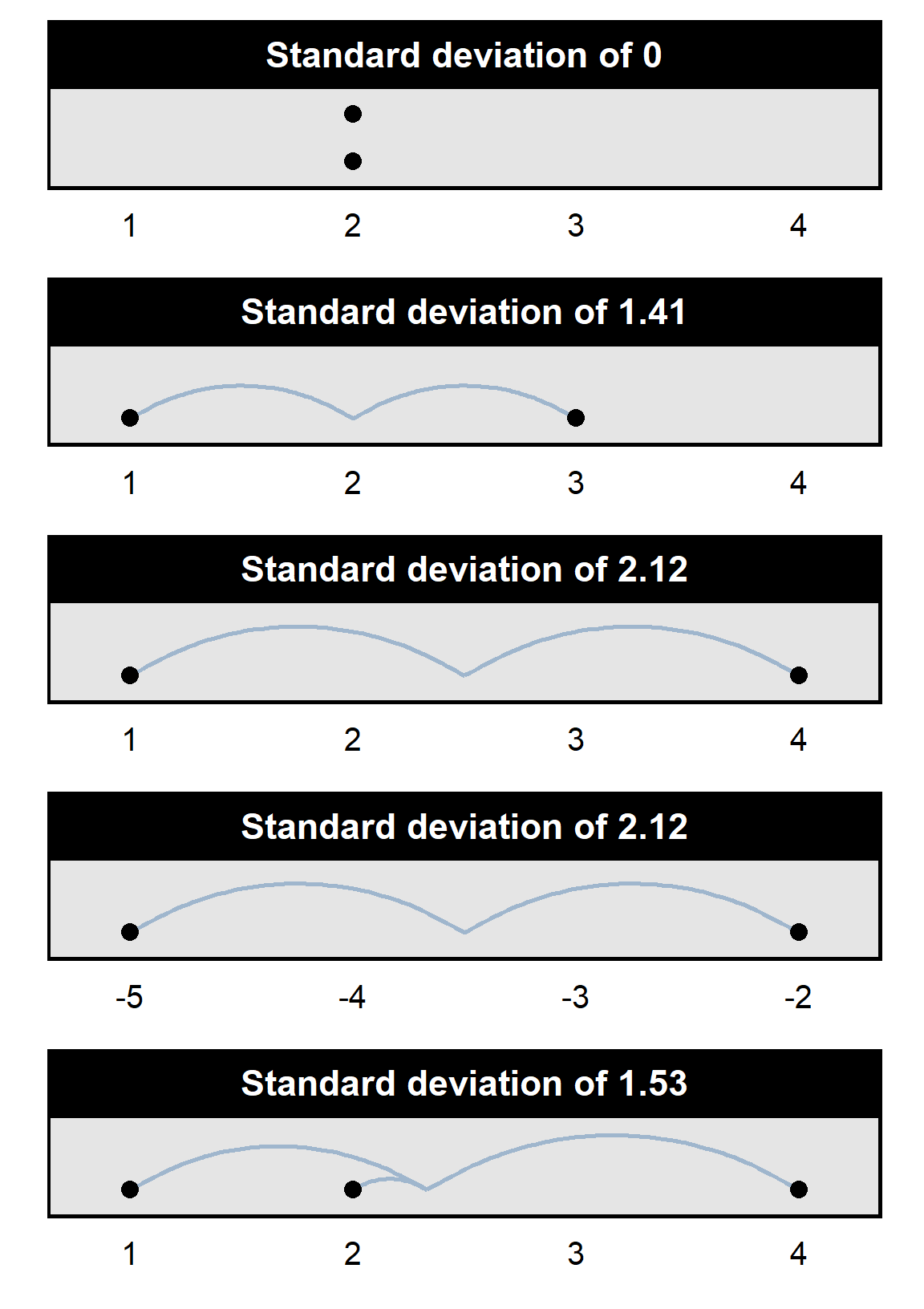

As indicated in the plot above, the standard deviation of the set {2,2} is 0, the standard deviation of the set {1,3} is 1.41, and the standard deviation of the set {1,4} is 2.12. And the standard deviation is also 2.12 for the set of numbers {-5,-2}, even though each number in the set is negative: standard deviation measures variation around the mean, and the numbers in the set {-5,-2} have just as much variation around the mean as the numbers in the set {1,4} have.

Standard deviation is not the same as the range: the standard deviation of the set {1,4} is 2.12, but the standard deviation of the set {1,2,4} is 1.53, because the average variation around the mean for the set of numbers {1,2,4} is less than the average variation around the mean for the set of numbers {1,4}.

Students will not need to calculate a standard deviation in this POL 138 course, but students are expected to correctly respond to items about the fact that standard deviation measures the variation that a set of numbers has around the mean of the set of numbers.

Sample practice items

For a set of numbers, the standard deviation is a measure of…

  1. central tendency
  2. correctness
  3. reliability
  4. validity
  5. variation
Answer
  1. variation

Which of the following correctly describes the standard deviation of the set of numbers {0,10,20}?

  1. The standard deviation is less than zero.
  2. The standard deviation is zero.
  3. The standard deviation is greater than zero.
Answer
  1. The standard deviation is greater than zero.
    Standard deviation measures variation, and there is some variation in the set of numbers.

Which of the following correctly describes the standard deviation of the set of numbers {-2,-4,-6}?

  1. The standard deviation is less than zero.
  2. The standard deviation is zero.
  3. The standard deviation is greater than zero.
Answer
  1. The standard deviation is greater than zero.
    Standard deviation measures variation, and there is some variation in the set of numbers.

Which of the following correctly describes the standard deviation of the set of numbers {-3,-3,-3}?

  1. The standard deviation is less than zero.
  2. The standard deviation is zero.
  3. The standard deviation is greater than zero.
Answer
  1. The standard deviation is zero.
    Standard deviation measures variation, and there is no variation in the set of numbers.

Suppose that the weight of six students weights in pounds are: {150, 160, 180, 185, 200, 220}. The standard deviation of these six numbers is 25.6. Suppose that each participant was wearing 5 pounds of clothes, so we subtract 5 pounds from each measurement to get these weights: {145, 155, 175, 180, 195, 215}. What would be the standard deviation for the new weights?

  1. Less than 25.6 pounds
  2. 25.6 pounds
  3. Greater than 25.6 pounds
Answer
  1. 25.6 pounds
    Subtracting 5 pounds does not change the amount of variation in the set of numbers. Each number shifts 5 lower, but the numbers don’t get closer to each other or farther from each other.

Suppose that a teacher gave an exam with 100 questions. The mean number of questions correct was 60, and the standard deviation for the number of questions correct was 20. Each question correct on the exam was worth 2 points. What is the standard deviation of the set of points earned, or is it not possible to know the standard deviation without additional information?

  1. Less than 20 points
  2. 20 points
  3. Greater than 20 points
  4. It is not possible to know the new standard deviation without additional information
Answer
  1. Greater than 20 points
    Multiplying numbers by 2 spreads the numbers farther out. Consider the numbers correct of 10 and 11, which are 1 apart. Counting those as 20 points and 22 points makes those 2 units apart, and thus the variation in the set of the numbers is farther apart.

Suppose that the statistics for a 100-point final exam in a particular course were a mean of 60 and a standard deviation of 10, and a range from a low of 0 to a high of 90. Suppose that the teacher added 10 points to each score, so that the new mean is 70 and the new range is from 10 to 100. What is the standard deviation of the new set of scores, or is it not possible to know the new standard deviation without additional information?

  1. Less than 10 points
  2. 10 points
  3. Greater than 10 points
  4. It is not possible to know the new standard deviation without additional information
Answer
  1. 10 points
    Adding 10 to each score did not spread the scores out any farther than the scores were before.

What would you expect about the standard deviation the set of eight numbers in the bottom row of the table below?

  1. The standard deviation is 0.534.
  2. The standard deviation is less than 0.534.
  3. The standard deviation is greater than 0.534.
Set of            Standard
eight numbers     deviation
---------------------------
0,0,0,0,0,0,0,0   0.000
0,0,0,0,0,0,0,1   0.353
0,0,0,0,0,0,1,1   0.463
0,0,0,0,0,1,1,1   0.517
0,0,0,0,1,1,1,1   0.534
0,0,0,1,1,1,1,1   ?
Answer The standard deviation for the missing row will be the same as the standard deviation for {0,0,0,0,0,1,1,1}, which is 0.517. The {0,0,0,0,0,1,1,1} and {0,0,0,1,1,1,1,1} have numbers just as far from each other.

1.5 Histograms

Major learning objective(s) for this section:

  1. Read a histogram.

Histograms are plots that indicate how many numbers are at a particular level or fall into into a particular range. The horizontal X-axis of the histogram indicates the level or range, and the vertical Y-axis of the histogram indicates the frequency of how often that level or range occurs in the data.

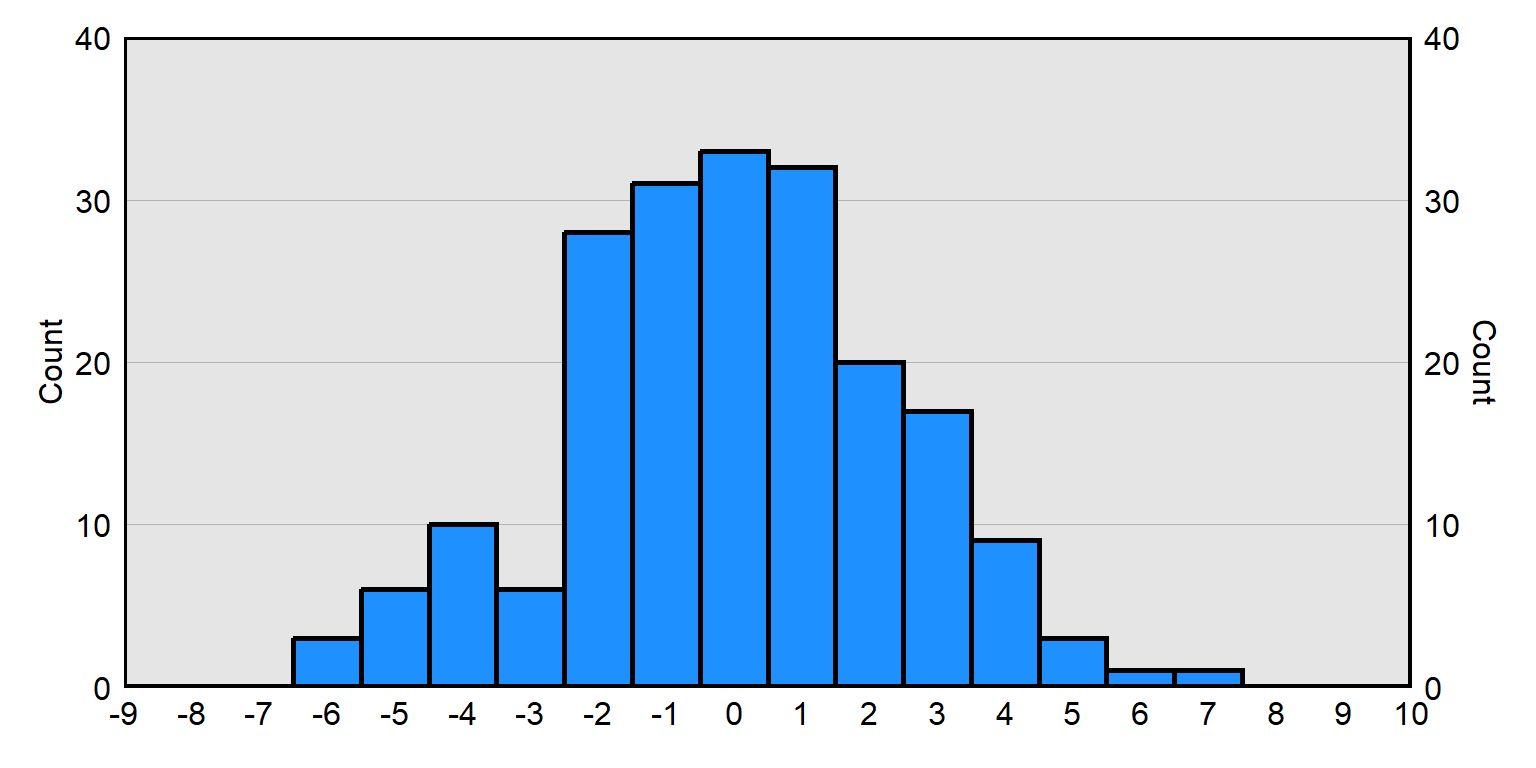

For example, for the histogram below, there are ten observations of -4 and twenty observations of 2.

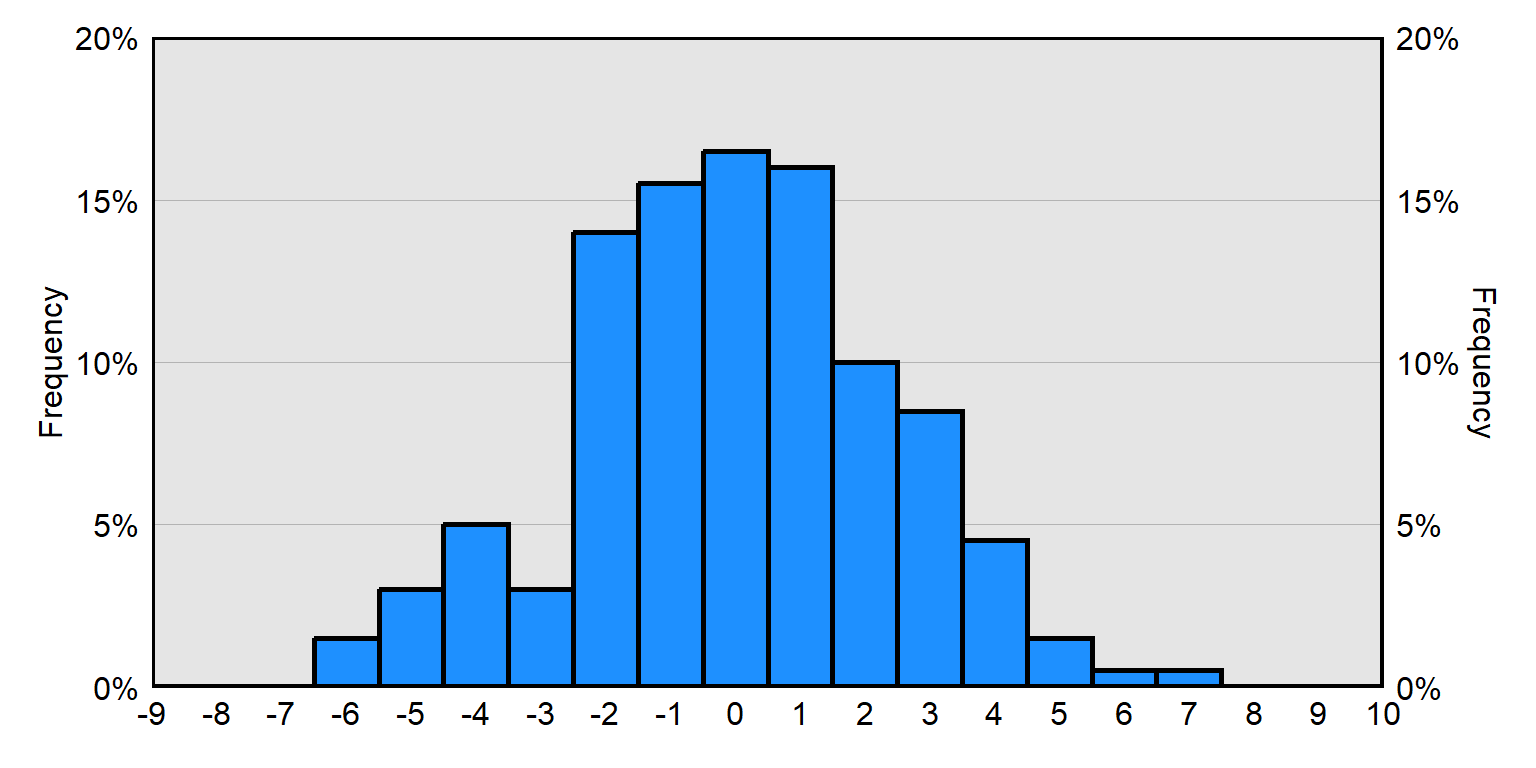

The Y-axis for a histogram can also indicate the percentage of observations that are at each level or fall into each range:

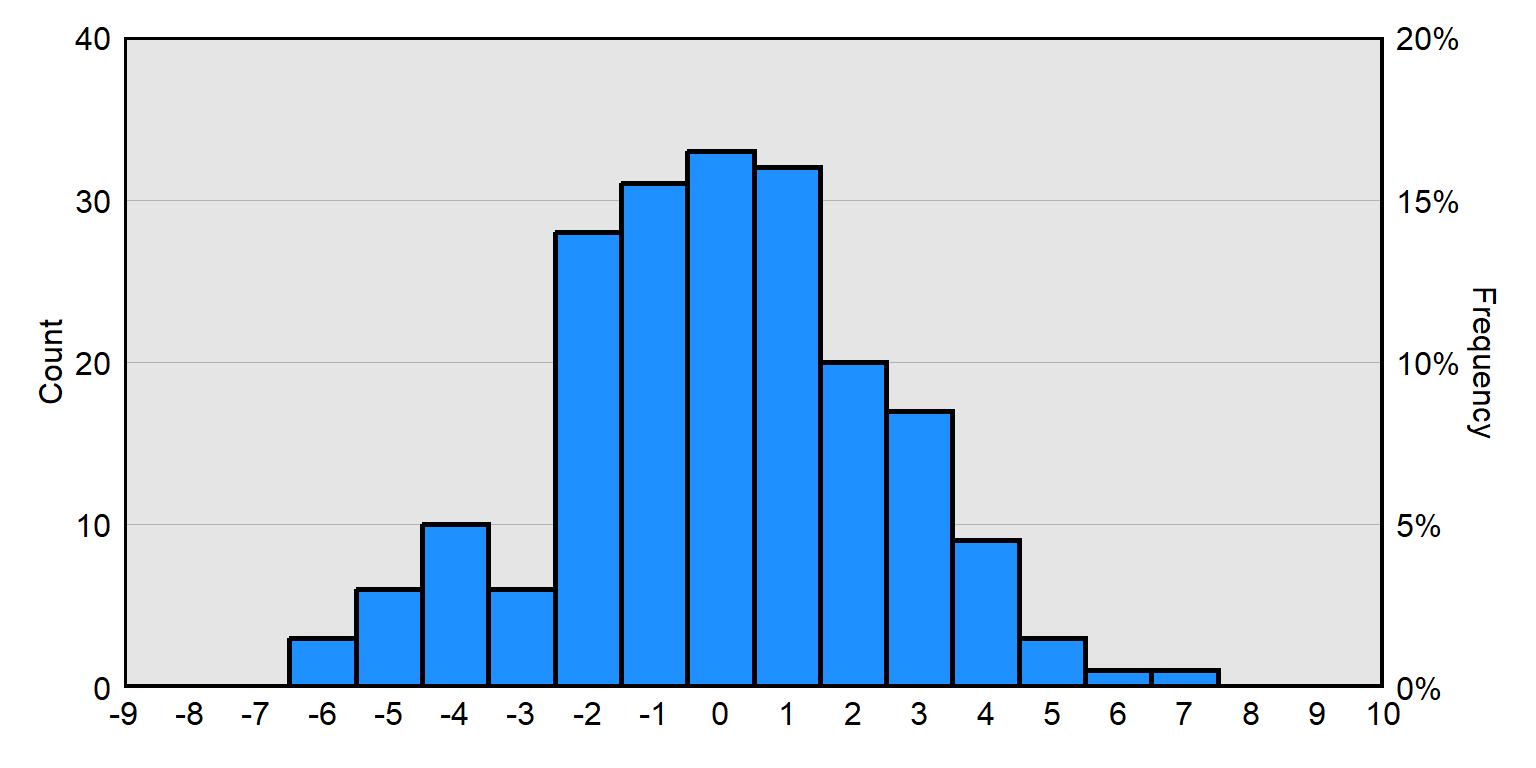

And a histogram can also indicate both counts and percentages:

Sample practice items

Which one of the following does the histogram indicate?

  1. 4 observations had a rating of 1
  2. 1 observation had a rating of 4
Answer
  1. 1 observation had a rating of 4

1.6 Proportions, percentages, and percentage points

Major learning objective(s) for this section:

  1. Determine a proportion, percentage, percentage change, and percentage point change.

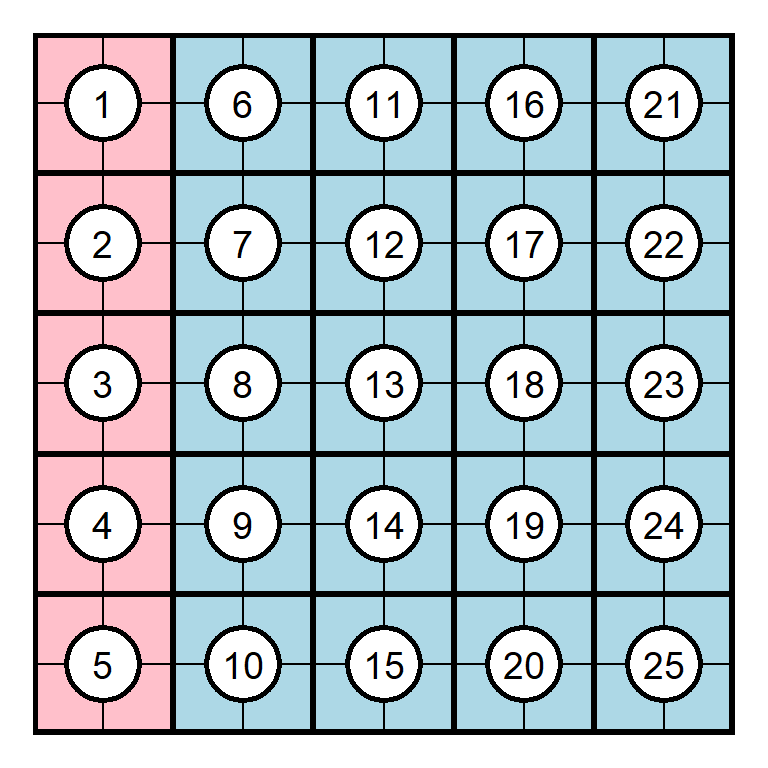

A proportion is a comparison of a part to a whole. Suppose, for example, that a class has 5 female students and 20 male students. The proportion of the class that is female can be expressed as a fraction, in which the numerator (the top number of the fraction) is the number that represents the part that is female (5), and the denominator (the bottom number of the fraction) is the number that represents the whole class (25). The proportion of the class that is female is thus 5 \(\div\) 25 and can be expressed as a decimal as 0.20.

A percentage is the numerator of a proportion when the proportion has a denominator of 100; the “per cent” means “per hundred”. To calculate a percentage, we can multiply the decimal proportion by 100%. So, for a class that has a proportion female of 0.20, the percentage of the class that is female can be calculated as 0.20 \(\times\) 100%, which is 20%.

Suppose that, next year, the class has 15 female students and 35 male students, for a total of 50 students. The proportion of students in that class that is female is now 15 \(\div\) 50 or 0.30, and the percentage of students in that class that is female is now 30%. That change, from 20% female to 30% female, can be expressed in two ways. That change can be expressed as a percentage point change by taking the new percentage and subtracting the old percentage; in this case, that is 30% female minus 20% percent female, to get a change of 10 percentage points. But that change can also be expressed as a percent change, in which the percentage point change is divided by the original percentage:

\[ \frac{\text{10 percentage point change}}{\text{original percentage of 20}} \text{= 0.50 = a 50% change} \]

So the same change – from 20% female to 30% female – can be expressed as a 10 percentage point increase or as a 50 percent increase.

Sample practice items

Suppose that the percentage of students at a college who are Republican is 20% in 2023 but is 22% in 2024. That change can be correctly expressed as an increase of…

  1. 2 percentage points
  2. 10 percentage points
Answer
  1. 2 percentage points

Suppose that the percentage of students at a college who are Republican is 20% in 2023 but is 22% in 2024. That change can be correctly expressed as an increase of…

  1. 2%
  2. 10%
Answer
  1. 10%
The percentage point change is 2, which is then divided by the original percentage of 20, to get a decimal percentage of 0.10. Multiply that decimal percentage by 100 to get a 10% change.

Suppose that the percentage of students at a college who are Democrat is 40% in 2023 but is 50% in 2024. Calculate the percentage point change from 2023 to 2024.

Answer
  1. 10%
The percentage point change is 50 percent minus 4 percent%, which is a 10 percentage point change.

Suppose that the percentage of students at a college who are Democrat is 40% in 2023 but is 50% in 2024. Calculate the percent change from 2023 to 2024.

Answer
  1. 10%
The percentage point change is a 10 percentage point change, which we divide by the original percentage of 40 percent to get 10/40 = 0.25 = 25%, so a 25 percent change.

1.7 Percentiles

Major learning objective(s) for this section:

  1. Answer items measuring knowledge of the definition of percentile.

This POL 38 course will define percentile so that scoring at the Nth percentile indicates scoring above N% of scores. For example:

  • Scoring at the 50th percentile indicates scoring above 50% of scores.
  • Scoring at the 95th percentile indicates scoring above 95% of scores.

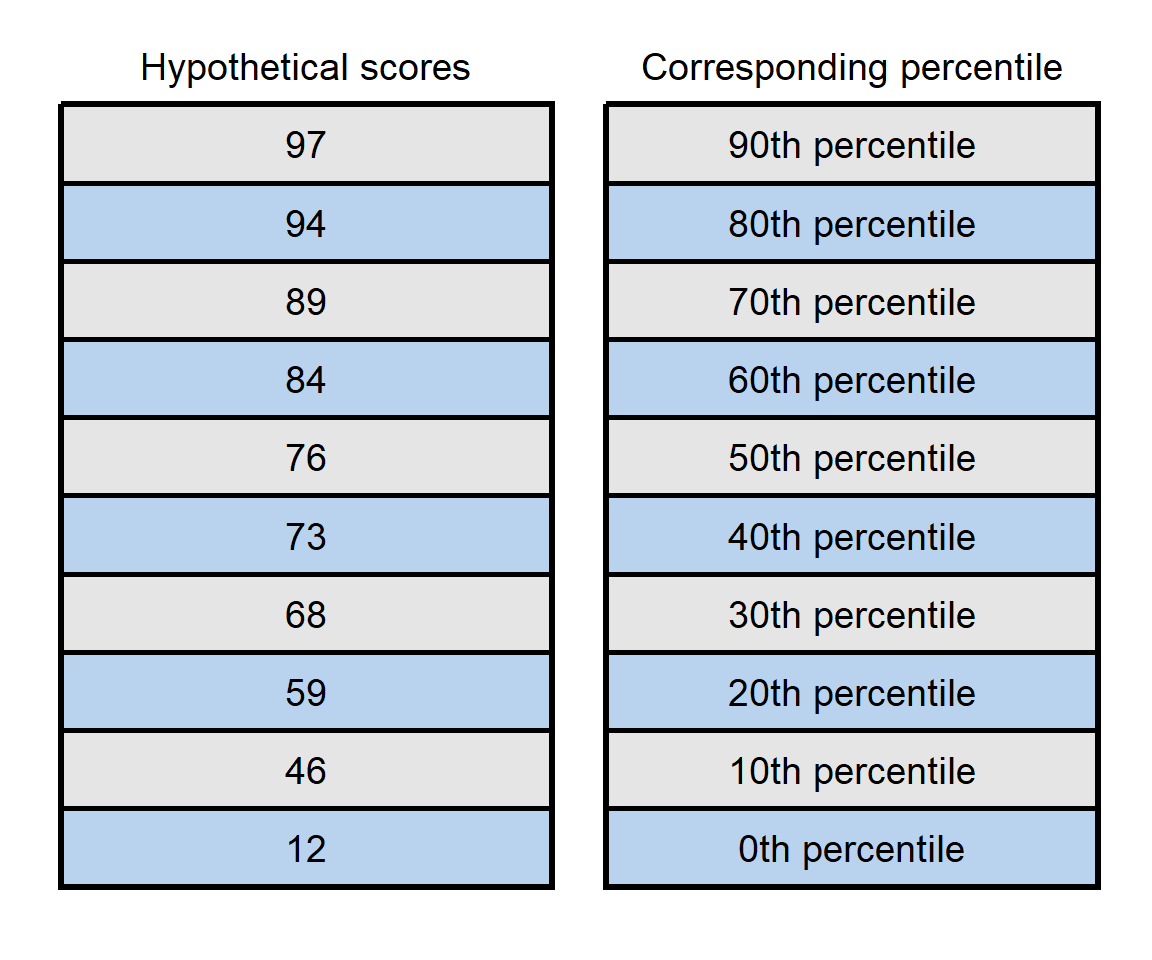

Imagine, as in the plot below, ten scores arranged from high to low. The lowest score is at the 0th percentile, because that score is above 0 percent of scores. The next higher score is at the 10th percentile, because that score is above 10 percent of scores (above only the lowest score, out of the 10 total scores). The highest score is at the 90th percentile, because that score is above the other 9 of 10 scores.

Percentiles are useful for comparisons: a student getting 90% correct on a test sounds good, but 90% correct might be a relatively low score compared to the student’s peers; in this case, a percentile can be useful for assessing how well a student did relative to the student’s peers.

Remember that percentiles are relative measures: the 50th percentile speed among Olympic sprinters is more impressive than the 50th percentile speed among all persons. The typical Olympic sprinter is on average faster than the typical person, so the middle speed among the set of Olympic sprinters is faster than the middle speed among the set of all persons.

Sample practice items

Suppose that a student scored at the 70th percentile on a test. Which of the following would certainly be true?

  1. The student got 70% of items correct.
  2. The student got 70% of items incorrect.
  3. The student scored better than 70% of test-takers.
  4. The student scored worse than 70% of test-takers.
Answer
  1. The student scored better than 70% of test-takers.

The SAT is a test that many high school students take for applying to college. Which is better?

  1. Scoring at the 1st percentile on the SAT
  2. Scoring at the 99th percentile on the SAT
Answer
  1. Scoring at the 99th percentile on the SAT
    At the 99th percentile, you score above 99 percent of SAT test-takers, compared to scoring above only 1 percent of SAT test-takers at the 1st percentile.

The SAT is a test that many high school students take for applying to college. The LSAT is a test that many college students take for applying to law school. Which is better, or are both equally impressive achievements?

  1. Scoring at the 90th percentile on the SAT
  2. Scoring at the 90th percentile on the LSAT
Answer
  1. Scoring at the 90th percentile on the LSAT
    The LSAT is a more difficult test in which the test-takers are often already in college and are interested in going to law school. Being above 90 percent of these test-takers is more impressive than being above 90 percent of SAT test-takers

Amy and Bob attend different schools. Suppose that Amy and 1,000 other students at her school take a standardized math test, and Amy scores at the 80th percentile on this test among students at her school. Bob and 1,000 different students at his school take the same math test, and Bob scores at the 70th percentile among students at his school. Based on only this information, could we infer that Amy is better in math than Bob is?

  1. Yes
  2. No
Answer
  1. No
    No, because the 1,000 students that Amy competed against might be worse in math than the 1,000 students that Bob competed against. Percentile is a relative statistics, and we don’t know the math ability of the students that Amy is compared to relative to the math ability of the students that Bob is compared to.

Suppose that the 16 scores on a test are: 12, 17, 43, 45, 56, 58, 62, 78, 81, 82, 85, 85, 89, 93, 97, and 98. What percentile would the score of 56 be at?

Answer The score of 56 is above 4 scores, and there are 16 scores, so the score of 56 is above 4/16 or 25% of scores. So 56 is at the 25th percentile.

NBA basketball players tend to be taller than the average U.S. resident. Suppose that Bob is at the 80th percentile of height among U.S. residents. Bob’s percentile height among NBA basketball players is likely…

  1. less than the 80th percentile
  2. at the 80th percentile
  3. greater than the 80th percentile
Answer
  1. less than the 80th percentile

Suppose that a student scored at the 80th percentile on the POL 138 pretest at the start of the semester and then scored at the 50th percentile on the POL 138 posttest at the end of the semester. Which, if any, of the following would necessarily be correct?

  1. The student got fewer items correct on the posttest than on the pretest.
  2. The student got a lower percentage of items correct on the posttest than on the pretest.
  3. The student knew less about the POL 138 material at the end of the semester than the student did at the start of the semester.
  4. None of the above
Answer
  1. None of the above

1.8 Weighted means

Major learning objective(s) for this section:

  1. Determine a weighted mean.

Sometimes, when calculating a mean, it is useful for some observations to get more emphasis (or weight) than other observations get. For example, in school, some courses give more emphasis to particular assessments than to other assessments, such as putting more emphasis on the final exam than on the midterm exam. The general formula for a weighted mean is to take each part of the overall mean, multiply that part by its weight, and then sum all the resulting numbers together.

Suppose, for instance, that a course has a midterm exam that is worth 20% of the final grade and a final exam that is worth 80% of the final grade, and suppose that a student scores 40% on the midterm and 70% on the final exam. We can represent that visually, as in the plot below:

We can calculate the student’s final grade accounting for the fact that the final exam gets more weight than the midterm, by calculating the areas for each part of the final grade and them adding the areas together, as follows:

(Midterm score)*(Midterm weight) + (Final exam score)*(Final exam weight)
          (40%)*(0.20)           +              (70%)*(0.80)
               8%                +                  56%
                                64%

Note that it doesn’t matter whether you multiply the score by the weight (in that order) or multiply the weight by the score (in that order).

For the plot, the 64% weighted mean represents the fact that the student’s performance covered 64 percent of the area, in which the midterm exam counts 20% toward the total and the final exam counts 80% toward the total.

Another way to think about the prior problem is that the final exam – at 80% of the final grade – is worth four times as much as the midterm exam at 20% of the final grade. Thus, we can imagine that there are four times as many final exam scores as there are midterm exam scores, such as:

40%   70%   70%   70%   70%

If we sum those 5 grades and then divide by the number of grades, we get:

40% + 70% + 70% + 70% + 70%
320% / 5
64%

Sample practice items

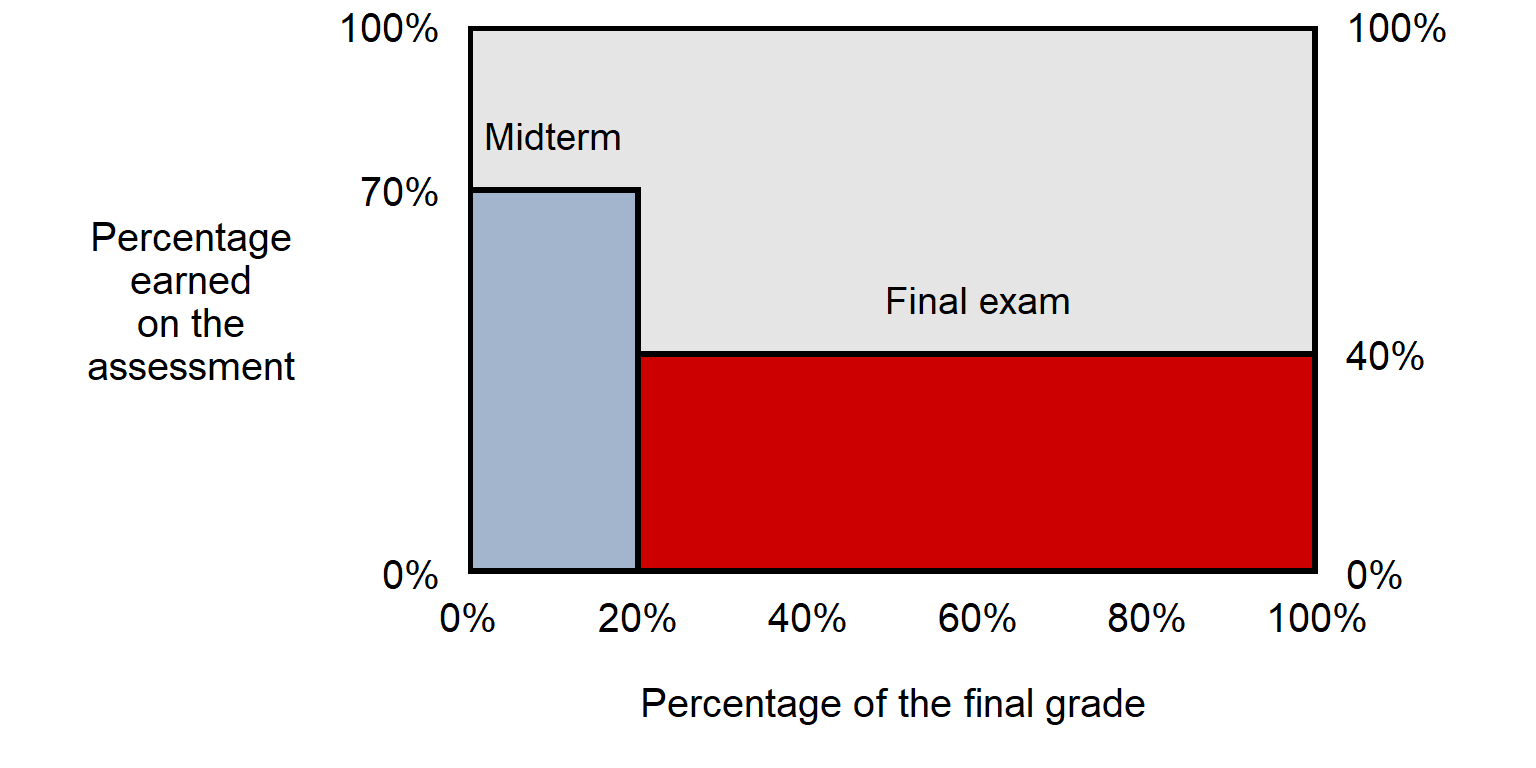

Let’s imagine a similar situation to the above situation, but in which the midterm score and the final exam score are reversed. Calculate the weighted mean for a situation in which the midterm counts for 20% of the final grade, the final exam counts for 80% of the final grade, the student scored 70% on the midterm, and the student scored 40% on the final exam.

Answer
(70%)*(0.20) + (40%)*(0.80) =
    14%      + 32%          =
            46%

Suppose that a course has three exams: Exam 1 (worth 20% of the overall grade for the course), Exam 2 (worth 30% of the overall grade for the course), and a Final Exam (worth 50% of the overall grade for the course). A student scored 90% on Exam 1, 80% on Exam 2, and 70% on the Final Exam. What is the student’s overall grade for the course?

Answer
(90%)*(0.20) + (80%)*(0.30) + (70%)*(0.50) =
    18%      +     24%      + 35%          =
                   77%

Extra practice item

Suppose that, in a POL 138 course, a student has scored 88% on everything except for the final exam. The final exam is worth 20% of the final grade. This course has no bonus. To the nearest whole percentage, what must the student’s percentage be on the final exam so that the student’s final grade is 90%?

Answer

This involves a bit of algebra, in which we can use X to represent the unknown final exam percentage:

(88)*(0.80) + X*(0.20) = 90
   70.4     +  0.20X   = 90
  -70.4                  -70.4 [subtract 70.4 from both sides of the equals sign]
           0.20X       = 19.6
            X          = 98
